Eot Crane Anti Collision Device

Product Description

Eot Crane Anti Collision Device

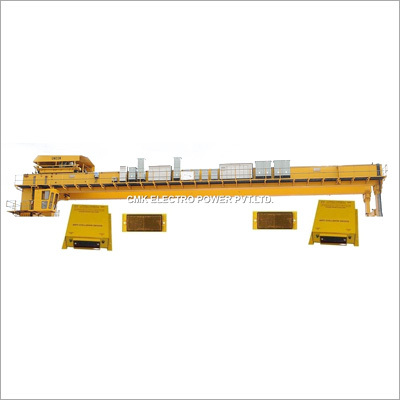

The Anti-collision system of CMK ELECTROPOWER PVT LTD is a safety device to avoid to collision of two electric overhead traveling cranes working on the same rails.

Range:

• 0-3 mtr
• 3-10 Mtr

Supply voltage: 110v/220v

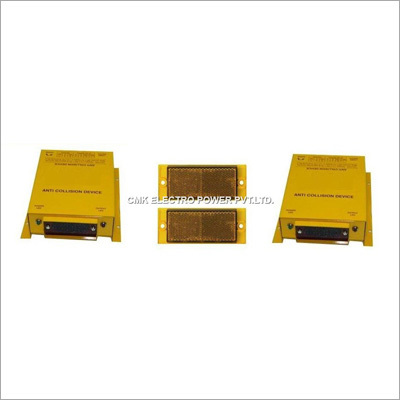

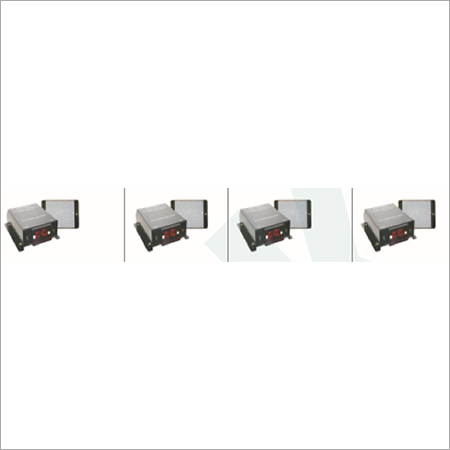

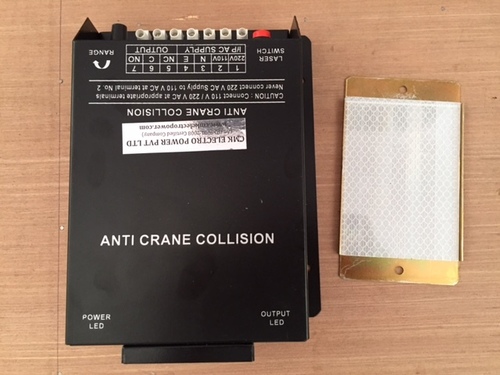

The System works on the principle of retro-reflective infrared waves. It consists of an emitter and sensor module and a special reflector.

Thus if the two cranes are away from each other than the reflected waves will not reach the sensor and the cranes operate normally. The sensing distance is adjustable between 3 to 10 meters. The anti-collision system is specially designed for the crane application and is suitable for the continuous duty.
