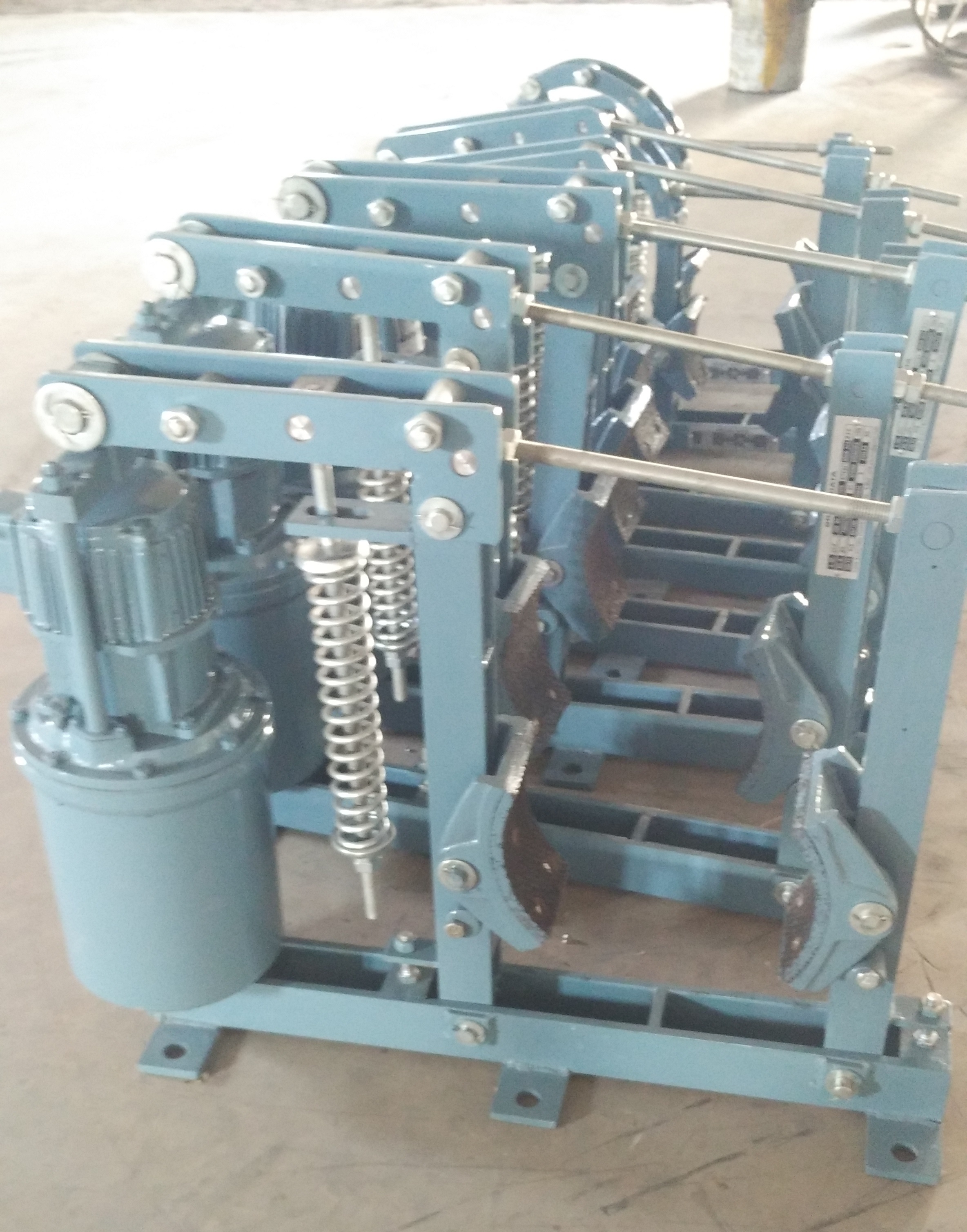

Electro Hydraulic thruster brake

Product Description

We have deployed some of our best experienced men to manufacture and export a durable range ofElectroHydraulic Thruster Brake. These brakes are widely used in crane and earth moving equipments for decreasing their movement and to stop them in the desired position. Owing to characteristics like easy installation, low maintenance and rugged construction, ourElectroHydraulic Thruster Brakeis applauded over the global platform. In addition, we are capable of customizing these brakes as per the needs of the clients.

Further Details:

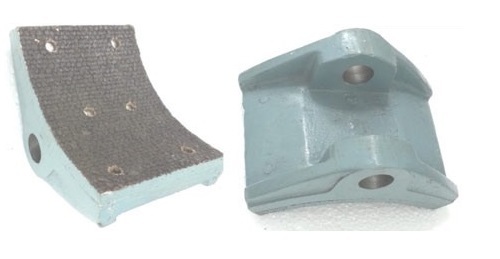

The braking force is applied to the brake shoes by a per stressed comprising spring. The shoes press on the rotating brake drum retarding its speed and finally stop it. The releasing of the brake drum and compressing of the spring is done by thruster.

• Thruster brakes are suitable for 400/ 440volts.
• 3 Phase, 50 Hz A.C. Supply. Brake Drum Diameter-100-600 MM.
• Braking torque: 6Kg.M. - 580 Kg.M.
• Easy installation & maintenance
• Reverse action version available
• Self-adjusting lining wear mechanism.
• Hydraulic/ pneumatic actuator.
• Gentle action, simple control, high performance.
