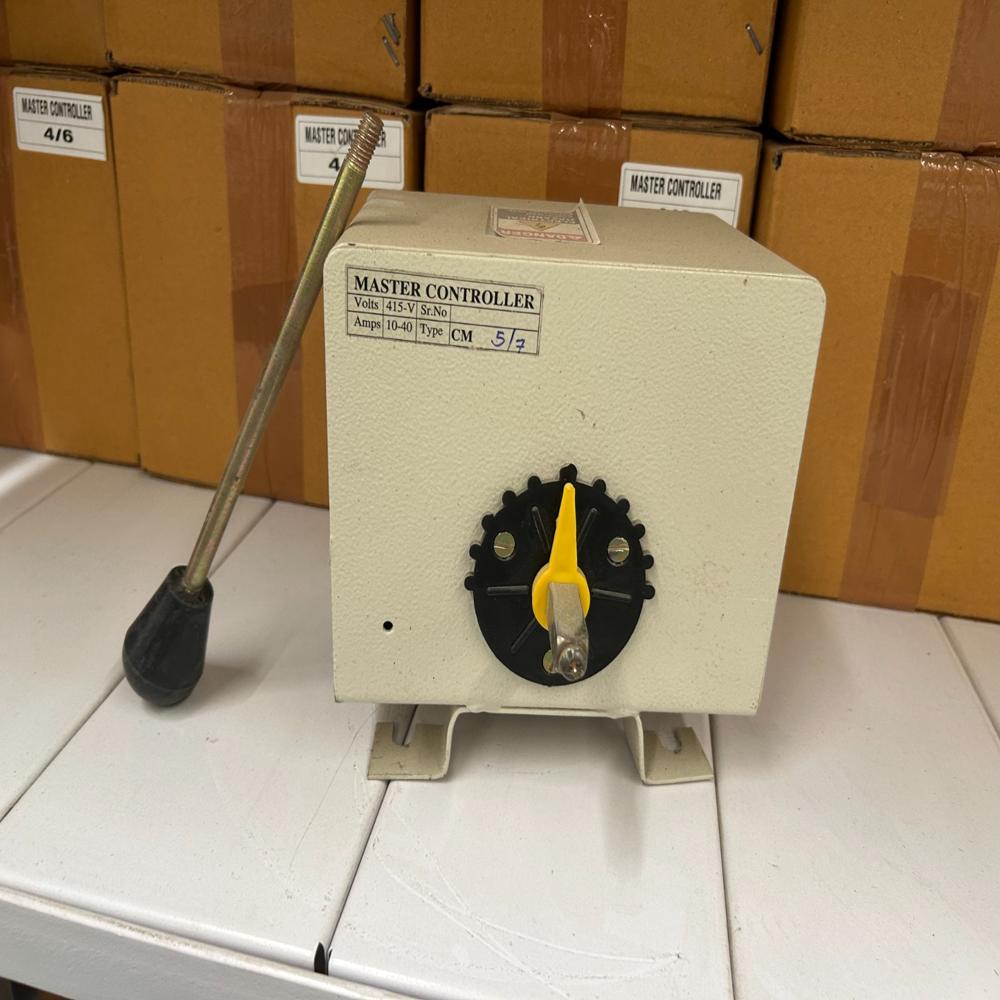

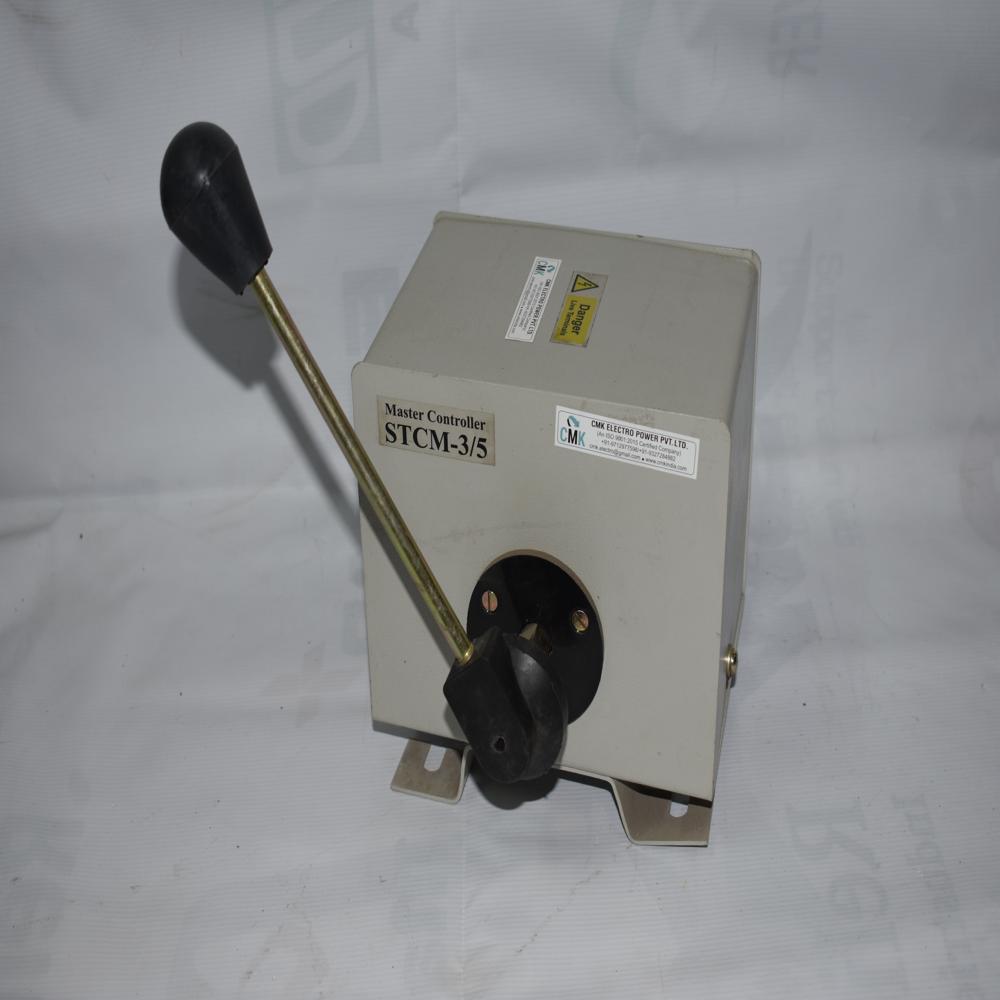

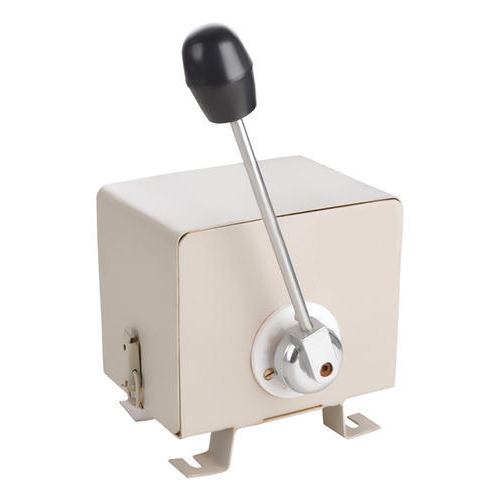

Electrical MASTER CONTROLLER

Product Description

We have acquired a notable position in the domain by manufacturing and exporting a superior range ofMaster Controller. Made from different materials like reinforced sheet steel and aluminium, these remotes are used for controlling cranes and industrial hoist during construction work. Easy operation, low maintenance and advance service life are some of the salient attributes of ourMaster Controller. We adhere to the parameters of the national and international quality standards to provide the clients with utmost satisfaction in terms of quality.

Specifications:

• Body Material: Sheet Steel / Aluminium Die Cast
• Degree of Protection: P-41/IP-54
• Mounting Position: Horizontal / Vertical
• Contact Material: Silver Cadmium
• Rated Voltage Insulation: 500 V.A.C
• Thermal Test Current: 10 Amps
• Cable entries: 2x20 2x60 standard conduit
• Frequency of Operation: 1000 switching per hour
• Contacts: Single / Double break
• No. of Contacts: 24 maximum
• No. of steps: 7-0-7 maximum
• Optional: Spring return / dead mans handle arrangement
