Anti Collision Device

Product Description

We have attained the maximum satisfaction of our clients by manufacturing and exporting a huge collection of Anti Collision Switch

The Anticollision system of CMK ELECTROPOWER PVT LTD is a safety device to avoid to collision of two electric overhead travelling cranes working on the same rails

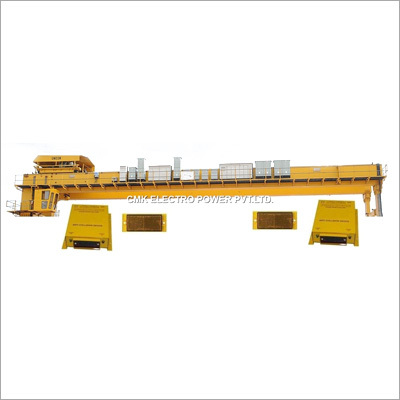

For one pair of cranes one sets of anticollision systems are required see above image

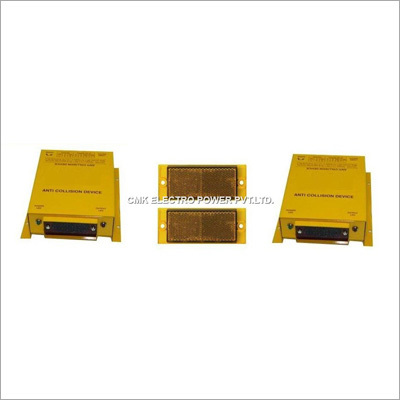

Each set consists of an Emittersensor module and a Reflector

        The System works on the principle of retroreflective infrared waves It consists of an emitter and sensor module and a special reflector The emitter emits the infrared waves in the direction of the reflector The reflector reflects these infrared waves back to the sensor The sensor senses the presence of these reflected infrared waves and activities an alarm signal and stopsreduces the speed of the cranes

Thus if the two cranes are away from each other then the reflected waves will not reach the sensor and the cranes operate normally The sensing distance is adjustable between 3 to 10 meters The anti collision system is specially designed for the crane application and is suitable for the continuous duty
