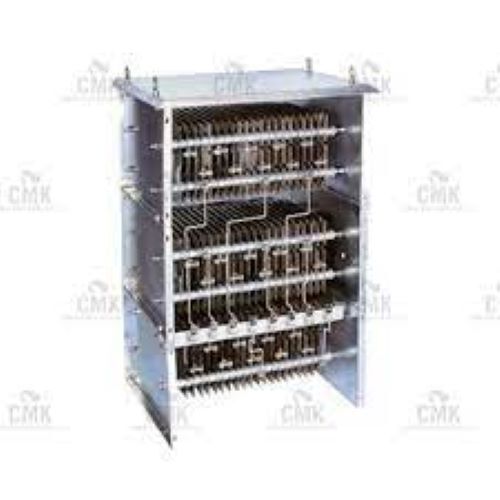

Stainless Steel Punched Grid Resistors

Resistors are designed to meet requirements of both A.C & D.C. Applications. The basis types of resistors are stainless steel and punched steel resistors these are manufacture for current rating from 10 to 800 Amps. Continuous resistors of higher rating are manufactured using 2 or more parallel paths. Resistors with short time rating up to 3000 Amos or even more for neutral earthing are possible which suitable for system voltage up to 11kv and above.

Technical Data/ Feature:

  • Enclosure: Sheet steel duty hot Dip galvanized/ Painted
  • Mounting: IP-11/ IP-21/IP-23/ IP-33
  • Protection degree: -7-400 Amps
  • Current rating (s.s. Grid) continuous: -7-800 Amps
  • Current rating (p.s. Grid) continuous: -air / oil cooled
  • Cooling : -2250C/ 2500C/ 3750C
  • Temperature rise: Bottom
  • Cable entry: -Punched grid elements are tig welded

Series Connection:

Rated value

Grid type

Current rating for various duty factors (Amps)

25% ED

40% ED

60% ED

100% ED

0.010

PS10

390

325

280

234

0.022

PS22

265

220

190

158

0.032

PS32

220

182

153

131

0.046

PS46

185

151

130

110

0.066

PS66

152

126

110

90

0.100

PS100

125

103

88

74

0.150

PS150

101

84

72

61

0.200

PS200

83

70

59

50

0.300

PS300

82

59

50

43

0.460

PS460

58

48

40

35

0.720

PS720

47

39

33

28

1.000

PS1000

40

33

28

24

1.500

PS1500

32

27

23

19

2.500

PS2500

25

21

18

15

4.500

PS4500

15

13

11

8
