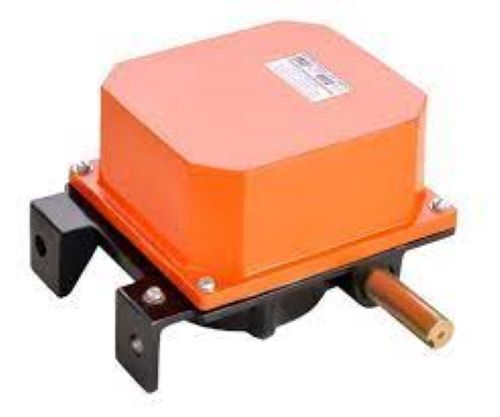

Warm Drive Limit Switch

Product Description

• In line with our ISO 90012008 certification we are engaged in manufacturing exporting and supplying optimum quality Hoist Limit Switch for our clients Suitable to use on reversing drives such as hoists cranes winches and rolling mills etc this switch is available with us in numerous technical specifications as per the set requirement of clients In order to manufacture this switch our skilled professionals uses bestinclass raw materials in complete compliance with defined international standards This Hoist Limit Switch can be purchased from us at a nominal price range




  Hoist Limit Switch Features




  Corrosion resistance




  Easy installation




  Dimensional accuracy




  Robust construction




  Hoist Limit Switch Specifications




  CMK Electropower Pvt Ltd is the leading manufacturer exporter of Hoist Gear Limit switchesHoist Gear Limit switches has been designed and manufactured according to safety standard are suitable for use on reversing drives such as hoists cranes winches and rolling mills etc




  Hoist Limit Switch Design The driving motion is transmitted by worm gear All gears and hubs are made of low wear thermoplastic The rotational movements are transmitted to switches by adjustable cams




  Hoist Limit Switch Driving cams Each lever has a single micrometric resister screwThis screw exclusively works on its own combined lever excluding any mechanical contact with any other next to it The regulation is easily made by use of screwdriver on a register screw The special friction system assures a rapid and precise adjustment




  Hoist Limit Switch Technical Data




  Body Material Black Nylon




  Cover Material Yellow Impact proof thermoplastic




  Protection Degree IP55




  Mounting Position Any




  Gear Ratios 1125 125 150 1100 1200 1400




  Drive Worm Drive




  Cable Entries 2 34 Conduit




  Maximum Rotation Speed 1200 rpm




  Contact Material Double break silver cadmium




  Wire Connection Screw terminal




  Rated Voltage Insulation 500 VAC




  Thermal Test Current 10 A
