ROUND CABLE WITH DUAL STRAIN RELIEF CORDS

Product Description

Pendant Cable

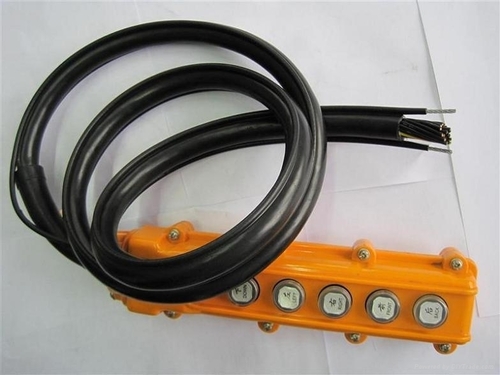

CMK electro power PvtLtd is passionately engaged in supplying an exclusive range of Pendant Cable MAKEGIOVENZANA INTERNATIONAL BV that is precisely manufactured using top most grade raw material and latest technology in tandem to set industrial norms This Crane Pendant Cable Are used for Crane push button  used for moving machinery This multicore cable used for heavy industry and industrial application

Features

• Energy and data transmission
• CT Series conductors
• Round cable with dual strain relief cords

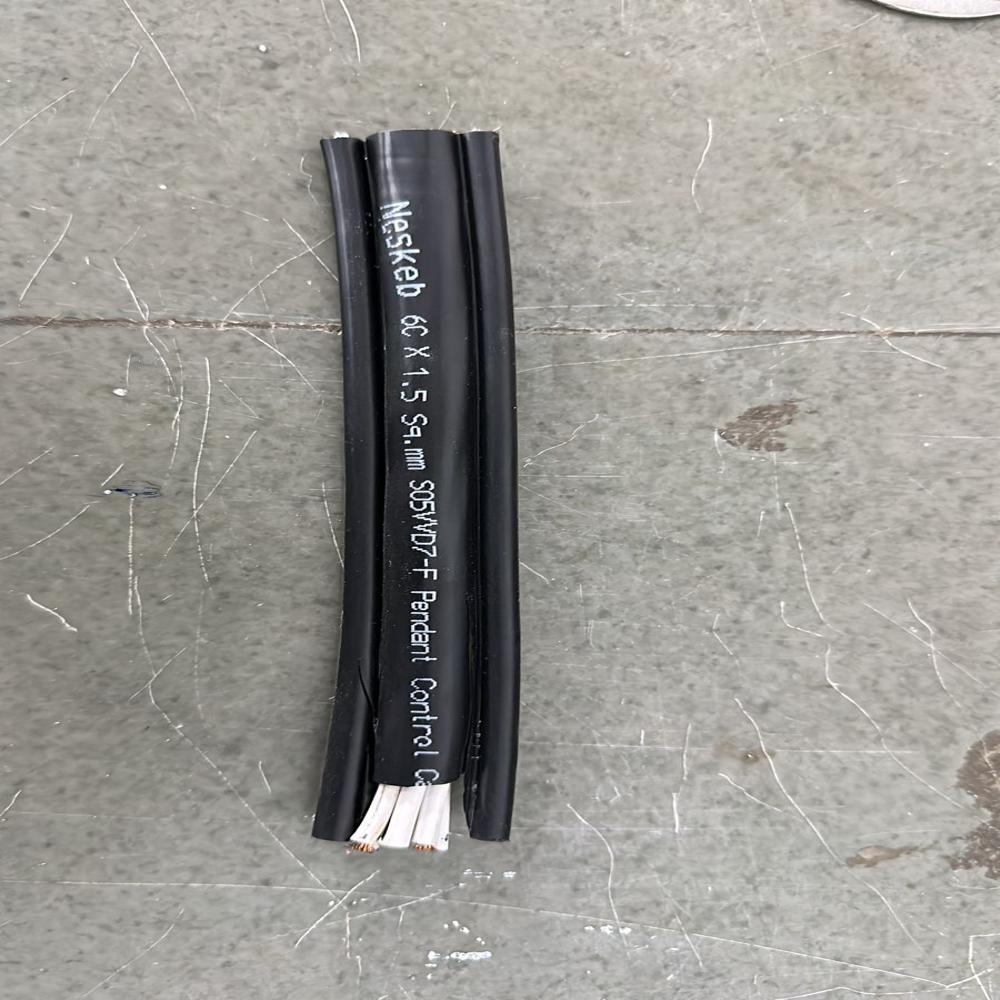

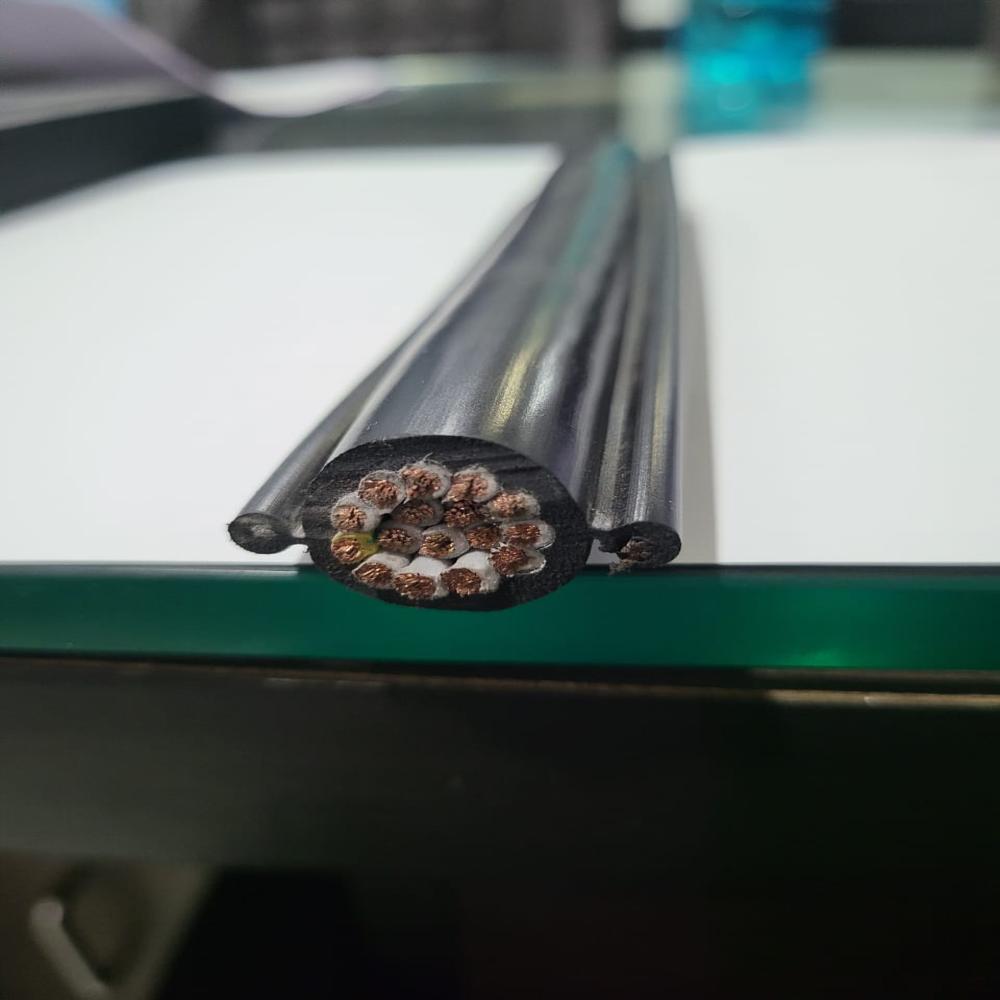

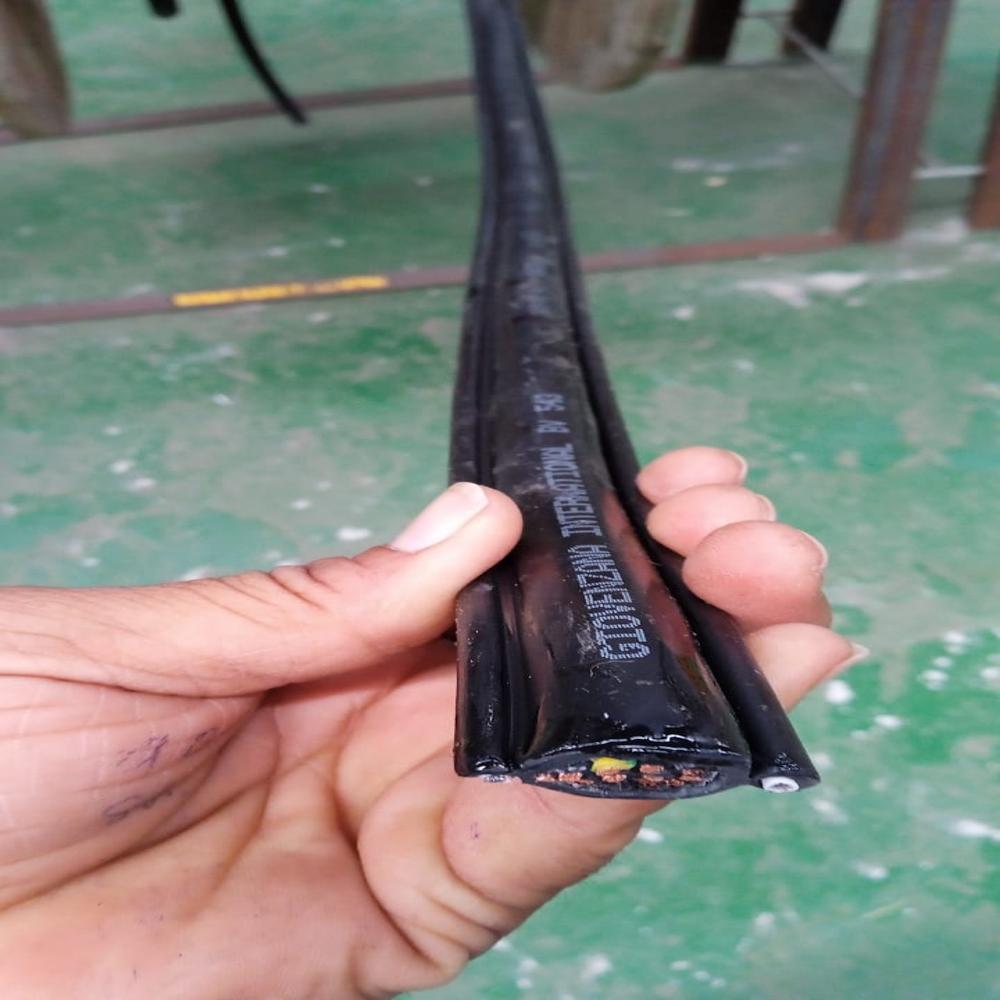

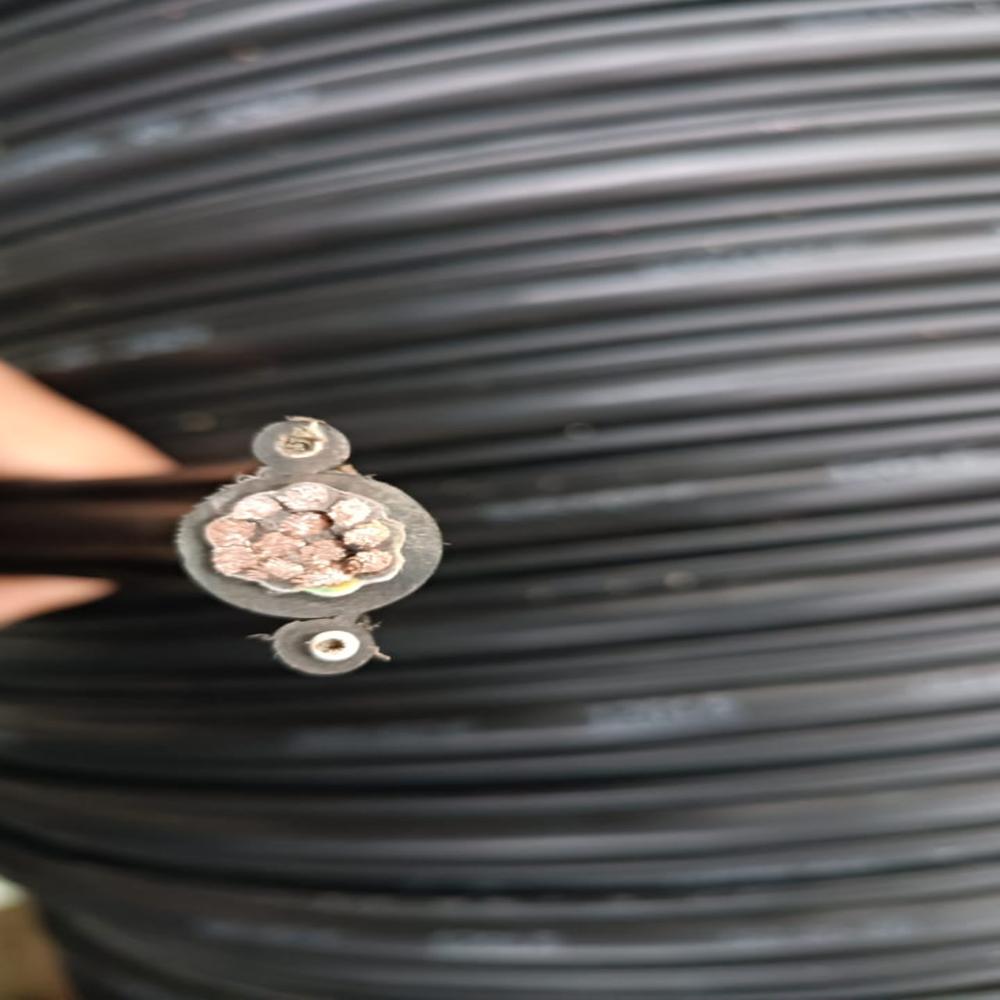

ROUND CABLE WITH DUAL STRAIN RELIEF STEEL WIRES  S05VVD7F

Made for heavy duty applications in particular for pendant push button stations and moving electromechanical components The two steel wire ropes are embedded diametrically opposed to PVC sheathing The rope cut into lengths and just hooked the steering control to avoid any stress on the cable

Special flexibility

• Temperature range15 to 90
• Bending radius 20 X outer diameter one or two steel rope

Applications

It is the electric control cable being used for cranes and Hoist and other appliances

Properties

• Comply with CEI 20  22 II
• flame resistant
• Insulation class 23
• Operational voltage 300500V
• Sheathing colour blue
• Internal conductors with flexible PVC Sheathing
• progressively numbered plus earth conductor yellowgreen
• Operating temperature 5C 70C
• 2mm steel wires
• Breaking point 60 kgmmq

Structure

• Conductor Fine strands of oxygenfree copper wire
• Inner liner nonwoven fabric wrapping to release impact
• Steel rope One or two selfsupporting steel rope is used to carry tensile force in working
• Outer sheath special PVC black
