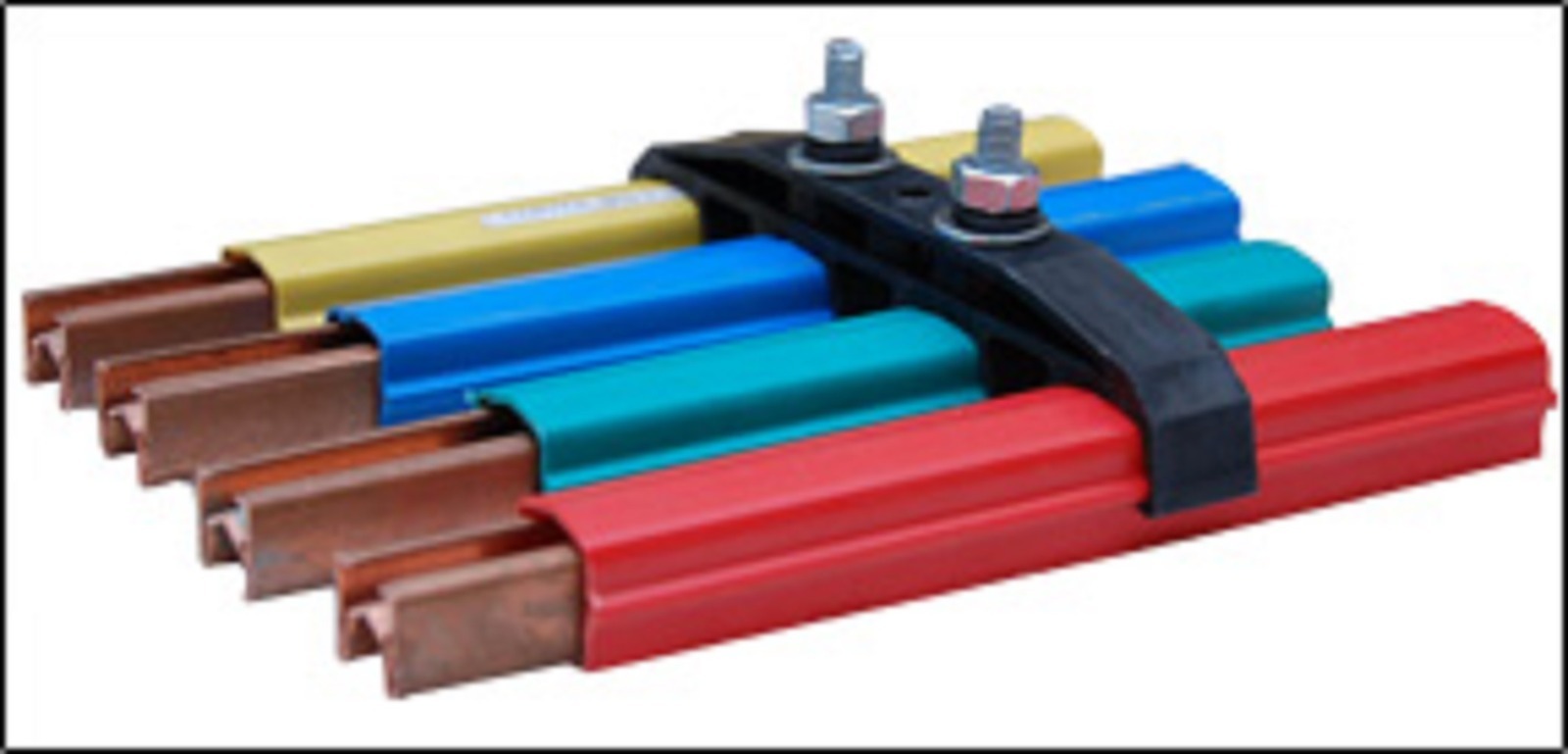

Enclosed Conductor Rail

Enclosed Conductor Rail
Product Code : DSL01
Brand Name : cmk
Product Description

Established in 2012 has today emerged as one of the most noted manufacturers, exporters and suppliers, we are engaged in offering high quality Enclosed conductor Rail. The offered rail is modern & safe system for energy transmission in various type of equipments such as EOT cranes, mobile machinery, bridge cranes, conveyor belts, chain conveyors etc. The offered rail is manufactured under the proper supervision of our adroit professionals by utilizing excellent quality raw materials and latest machinery. Further, this Enclosed conductor Rail is available in different specifications as per the specifications laid down by our clients.

Features:

  • High tensile strength

  • Anti-corrosive

  • Easy to install

  • Robust structure

  • Rail Length [mm]: 4.000

  • Outside-Dimensions of bar profile: 2.20" x 3.54" (56.0 mm x 90,0 mm)

  • Support Spacing: 6.56 ft (2 meters)

  • Operating Conditions: For indoor and outdoor applications

  • Track Configuration: Straight course; curve segments available by request

  • Current Range : 40 Amps, 60 Amps, 80 Amps, 100 Amps, 120 Amps, 140 amps, 160 Amps, 180 Amps, 200 Amps

  • Maximum Running Speed: 278.9 feet/minute (85 meters/minute)

Electrical properties:
  • Max. Voltage(V): 600

  • Rail Length [mm]: 4.000

  • Conductor cross section(mm2): 10 - 16 - 25 - 35 - 50

  • Resistance( /km): 1.656 - 1.137- 0.713 - 0.522 - 0.337

  • Leakage resistance: CTI600-2, 7

  • Dielectric strength: 30-40KV/mm

  • Track Configuration: Straight course / Curve segments on request ( R 1.2m )

Mechanical properties:

  • Flexible strength: 75N/mm2± 10%

  • Tensile strength: 40N/mm2± 10%

Temperature range:

  • Common Housing: -30oC up to +60oC

  • BAY-BLEND Housing: -20oC up to +115oC
