Cable with Dual Strain Relief

Cable with Dual Strain Relief
Cable with Dual Strain Relief
Product Code : cmk 002
Brand Name : Giovenzana
Product Description

Cable with Dual strain relief

CMK electro power Pvt.Ltd. is passionately engaged in supplying an exclusive range of Cable with Dual strain relief MAKE:GIOVENZANA INTERNATIONAL B.V.that is precisely manufactured using topmost grade raw material and latest technology in tandem to set industrial norms.This Crane Pendant Cable Are used for CRane push button & used for mouving machinery.this multicore cable used for heavy industry and industrial application.

Cable with Dual strain relief Features :

Energy and data transmission
CT Series conductors
Round cable with dual strain relief cords

ROUND CABLE WITH DUAL STRAIN RELIEF STEEL WIRES - S05VVD7-F

Made for heavy duty applications in particular for pendant push button stations and moving electromechanical
components. The two steel wire ropes are embedded, diametrically opposed to PVC sheathing.
The rope cut into lengths and just hooked the steering control to avoid any stress on the cable.

  • Special flexibility
  • Temperature range:-15 to +90
  • Bending radius :20 X outer diameter one or two steel rope

Cable with Dual strain relief Applications:
It is the electric control cable being used for cranes and Hoist and other appliances.

Cable with Dual strain relief Properties:

Comply with CEI 20 - 22 II
(flame resistant)
Insulation class 2/3
Operational voltage 300/500V
Sheathing colour blue
Internal conductors with flexible PVC Scheathing
progressively numbered, plus earth conductor (yellow/green)
Operating temperature: -5°C +70°C
Ø 2mm steel wires
Breaking point: 60 kg/mmq

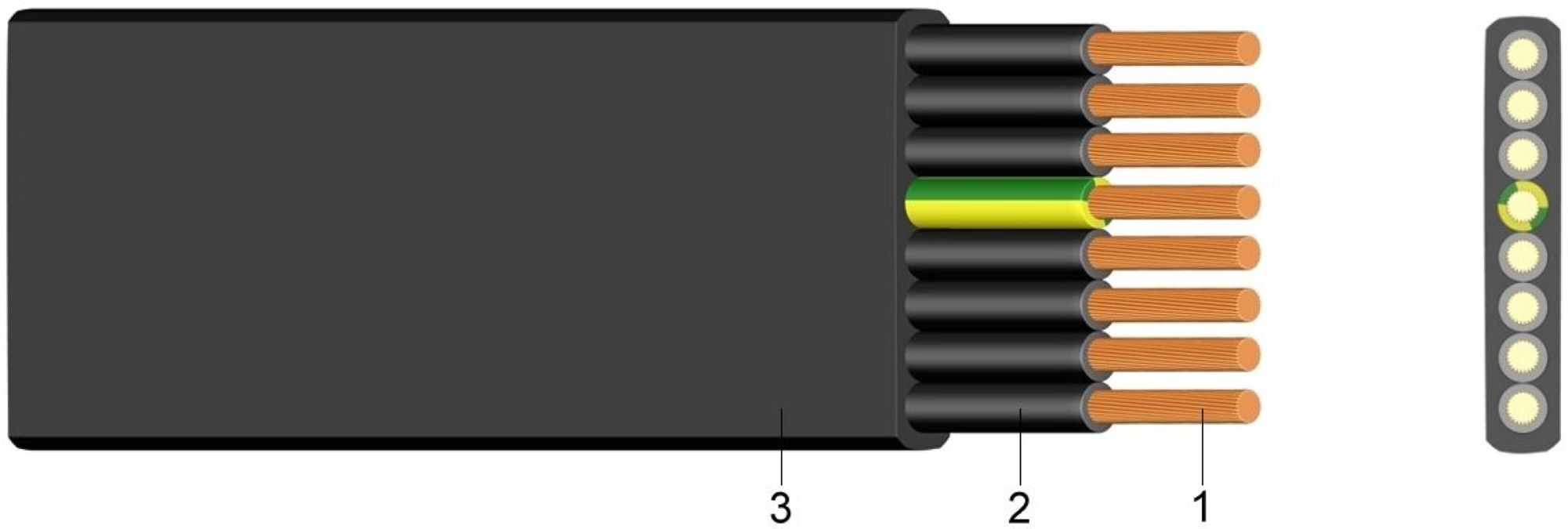

Cable with Dual strain relief Structure:

  • Conductor: Fine strands of oxygen-free copper wire.
  • Inner liner: non-woven fabric wrapping to release impact
  • Steel rope: One or two self-supporting steel rope is used to carry tensile force in working.
  • Outer sheath: special PVC, black
