Electro Hydraulic Thruster Brakes

Product Description

Being committed towards ensuring complete client satisfaction, we are manufacturing and supplying a qualitative array of Thruster Brakes. Featured with self adjusting lining wear mechanism, hydraulic or pneumatic actuator and easy installation, these brakes are used to retard the speed of moving machinery and to stop it accurately to the desired position. In order to manufacture high quality Thruster Brakes, our professionals employ advanced machines and utilize quality tested material procured from the authentic vendors. Owing to unmatched quality, these brakes are accredited in both local & global markets.

Introduction:

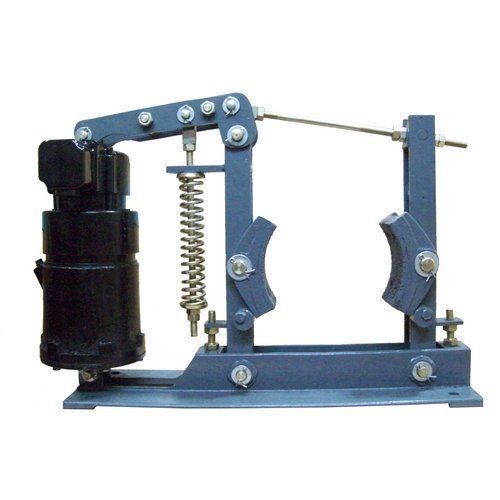

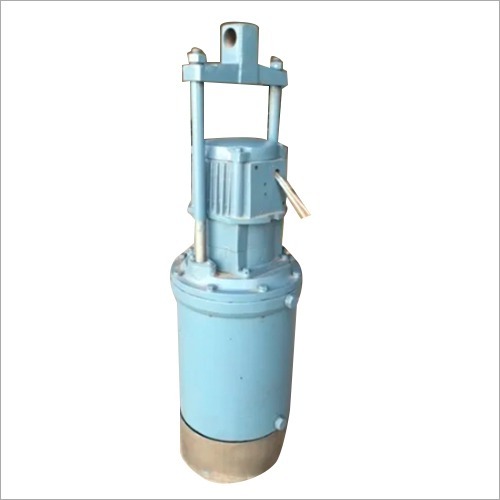

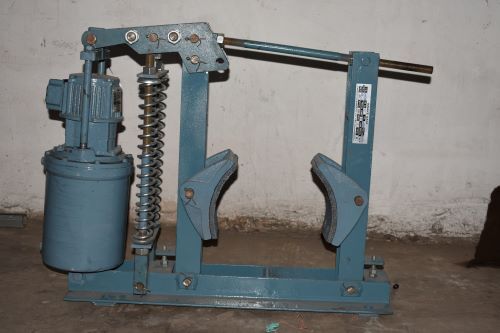

Thruster brake is used to hold the speed of moving machinery, and to stop the machine accurately to desired place. A pre-stressed compression spring is utilized to apply the braking force to the brake shoe. With shoes press on the revolving brake drum retarding the speed and ultimately stopping the machinery. The compressing of the spring and releasing of the brake is done by the Thruster. The thruster shoe brake features a couple of cast iron shoes, which are lined up with the friction pads.

The shoes are hinged on the side arm and the main arm of brake, each having a hinge pin set in the base. They are attached to each other on the top by a tie rod, which is hinged in the principal arm and fastened to the swivel block in the side arm by a lock nut. A crank lever is attached on the main arm, and other end is set to the top clevis of thruster by a hinge pin. The main arm has a brake spring which is locked with a lock nut on the lever. Pre tension in this spring determines the braking torque.

Key Features:

• Spring loaded common ON Fail-safe Brake.
• Mix of Electro Hydraulic Thruster, Liner riveted to Brake Shoes and Torque Spring.
• Takes Transformer Oil for thruster cylinder.
• Suited for 415 V AC, 3 Phase, 50 Hz supply.
• Function: to stop, moving or rotating machinery like gearbox and motor.
• Instant stop, and prevents jerk with soft stop.
• Holds or stops the load in desirable place.
• Robust, maintenance free design.

Applications:

• Material Handling / Lifting Equipments
• Winches & Conveyors
• Lifts & Elevators
• Hoisting: Electric Wire Rope Hoists & Crabs
• Cross travel & Long travel: EOT / Goliath / Gantry

• Our range of Thruster Brakes is perfect in terms of drum diameter, thruster capacity and torque capacity.
